TLP521-4X
- Part Number
- TLP521-4X
- Manufacturer
- Isocom Components 2004 LTD
- Description
- OPTOISO 5.3KV 4CH TRANS 16DIP
- Data sheet
-
TLP521-4X.pdf
- Category
- Optoisolators - Transistor, Photovoltaic Output
- Family
- Optoisolators - Transistor, Photovoltaic Output
- Series
- -
Request a Quote
Buy the TLP521-4X Isocom Components 2004 LTD on HK DCY Technology Limited,we are Isocom Components 2004 LTD Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the TLP521-4X within 24 hours,please contact our sales team or send email to SALES05@HKDCY.COM Hope we can cooperate in the future.
Specifications
| Part Status | Active |
|---|---|
| Number of Channels | 4 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 55V |
| Current - Output / Channel | - |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Through Hole |

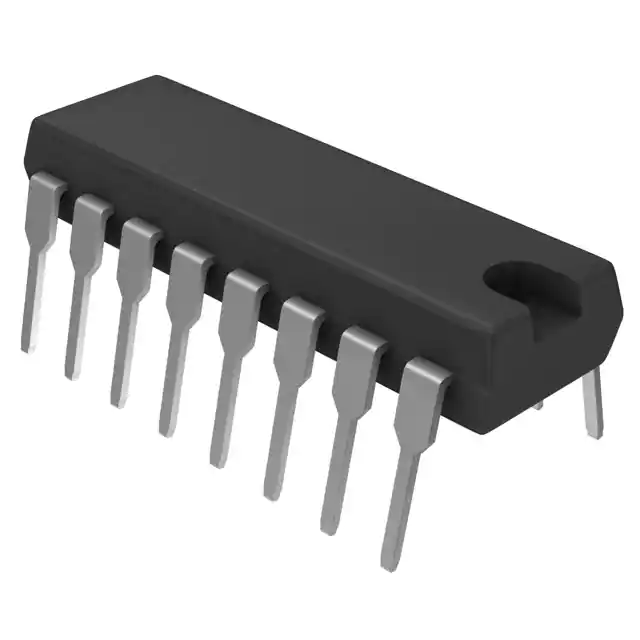

| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-DIP |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
