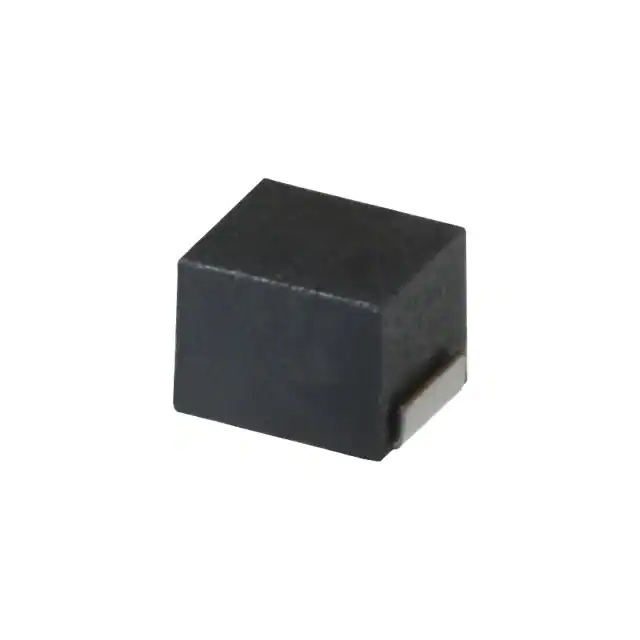

NLHV25T-R15J-PF
- Part Number
- NLHV25T-R15J-PF
- Manufacturer
- TDK Corporation
- Description
- FIXED IND 150NH 500MA 420 MOHM
- Data sheet
-
NLHV25T-R15J-PF.pdf
- Category
- Fixed Inductors
- Family
- Fixed Inductors
- Series
- NLHV
Request a Quote
Buy the NLHV25T-R15J-PF TDK Corporation on HK DCY Technology Limited,we are TDK Corporation Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the NLHV25T-R15J-PF within 24 hours,please contact our sales team or send email to SALES05@HKDCY.COM Hope we can cooperate in the future.
Specifications
| Part Status | Obsolete |
|---|---|
| Type | Wirewound |
| Material - Core | - |
| Inductance | 150nH |
| Tolerance | ±5% |
| Current Rating | 500mA |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 420 mOhm Max |
| Q @ Freq | 30 @ 25.2MHz |
| Frequency - Self Resonant | 550MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Frequency - Test | 25.2MHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
